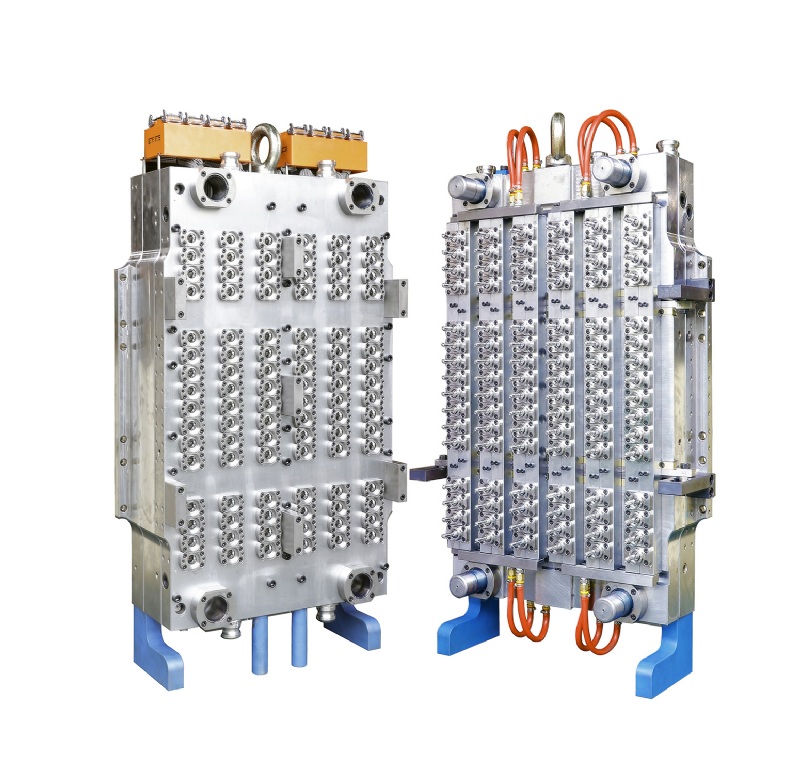

PET PREFORM MOULD
Category: Injection Mould
Exhibitor: TAIZHOU CITY HUANGYAN ZHISHENG MOULD FACTORY
Booth No: 509, 518
Characteristic
Mold Materials
- Cavity / Core: H13 mold steel (nitrided treatment, hardness HV ? 1000, bottle mouth thread hard chrome plated 10-15μm)
- Hot runner system: Husky hot runner
- Surface treatment: Cavity roughness Ra ? 0.4μm, mold frame surface anti-rust treatment (epoxy resin spraying)
Inspection Reports after shipment .
- Material inspection: H13 steel material report, nitrided treatment depth 0.3-0.5mm inspection report
- Sealing test: 0.3MPa air pressure hold for 30 seconds, leakage ? 5ml/min (immersion method)
- Hot runner compatibility: Pressure drop test report with Husky hot runner (pressure drop ? 0.2MPa)
